DIgital bus Light wa2812B led circle ring



Add:3/F,Building A,Jinmao Technology Park,Tangyanshan lndustrial Zone Tangkeng,Shiyan,BaoanDistrict,Shenzhen
Email:jessie@witop-tech.com  phone:0086+15676178187



Features
WS2812B Module use the FR4 (Glass fiber board) to be assembly circuit boards, use SMD LED lights and components to be assembled,
Products using DC5V voltage to power supply high safety factor using the import led chip to be the light source high  brightness light fade is small maintenance free long lifespan energy saving and environmental protection based on the
above characteristics More and more peopel choose led strip as lighting decoration product so that the thickness of the product only just like,LED Chip is built-in IC, then the components is less , pixels can be high,can make
attractive appearance, and so on.
IC is designed with one data line, two power lines, 256 gray scale, high brightness, fast data transfer, fast screen refresh, etc.

Product Warranty
Warranty is 2 Years


Applications
Automotive beauty body underbody wheelbarrow balanced car etc ( , , , .)

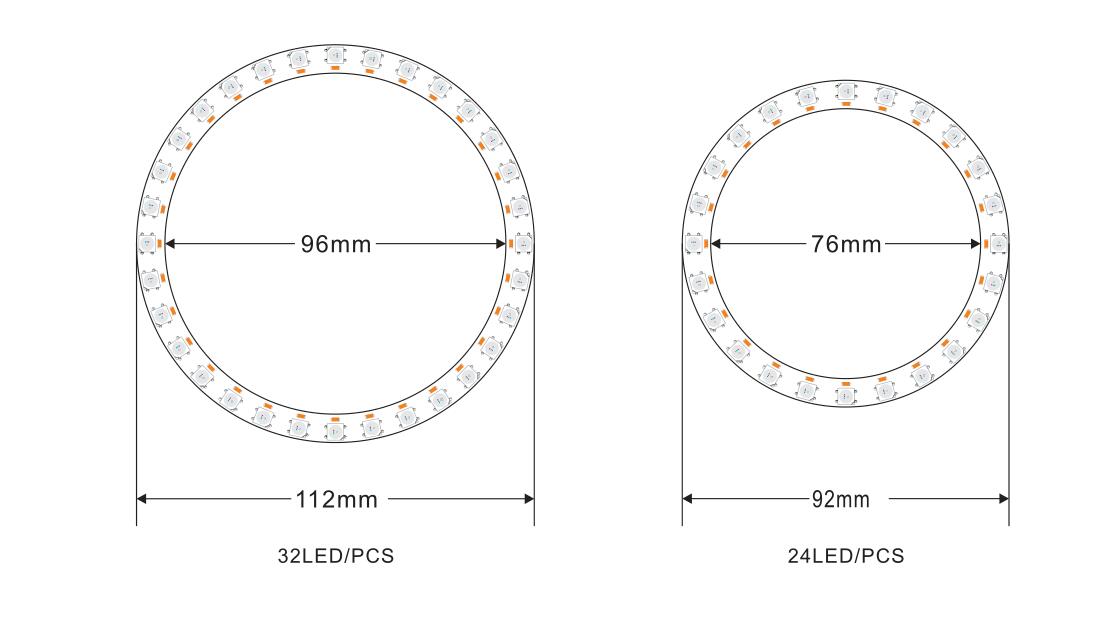

Product Size



Specifications

Wiring diagram
Contact Us
